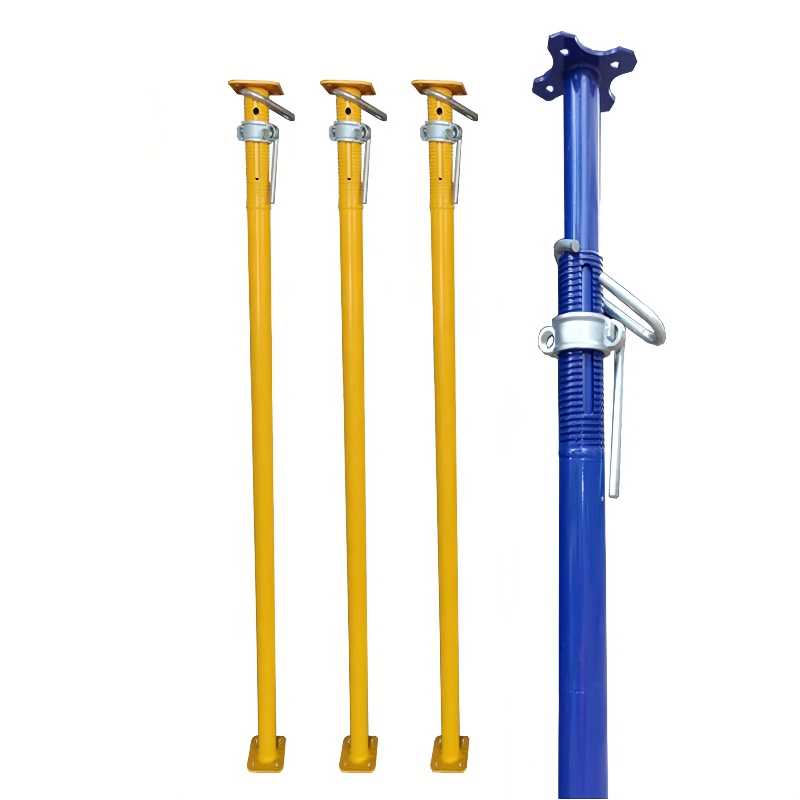

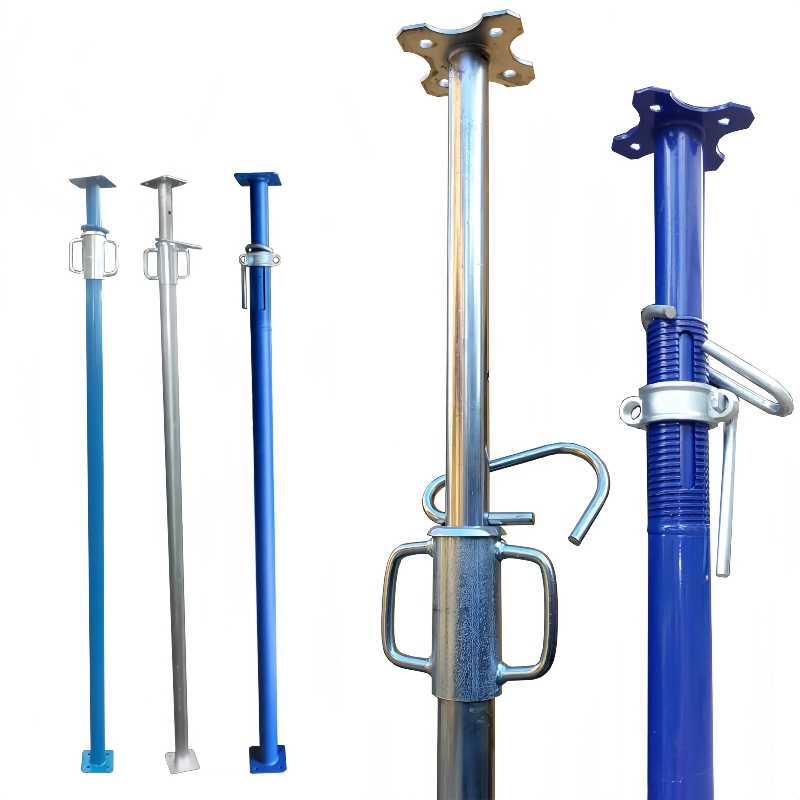

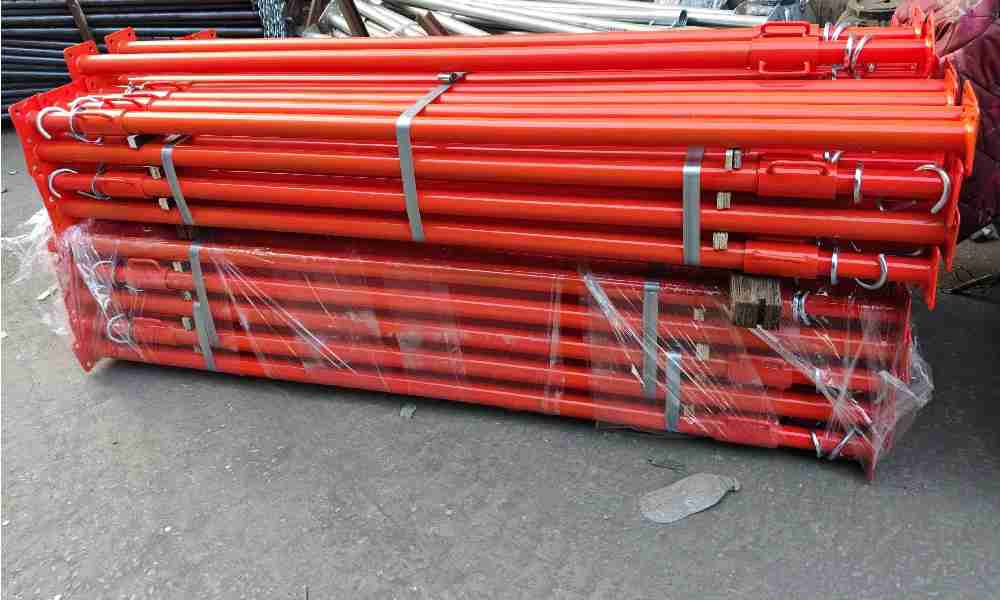

Adjustable Steel Props are temporary support systems widely used in construction projects to provide reliable vertical support for formwork, ceilings, beams, and slabs. Manufactured from high-quality steel tubes with precision welding technology, our steel props feature high load-bearing capacity, excellent stability, and flexible height adjustment.
Specifications
Type: Adjustable Steel Prop
Material: Q235 / Q345 Steel

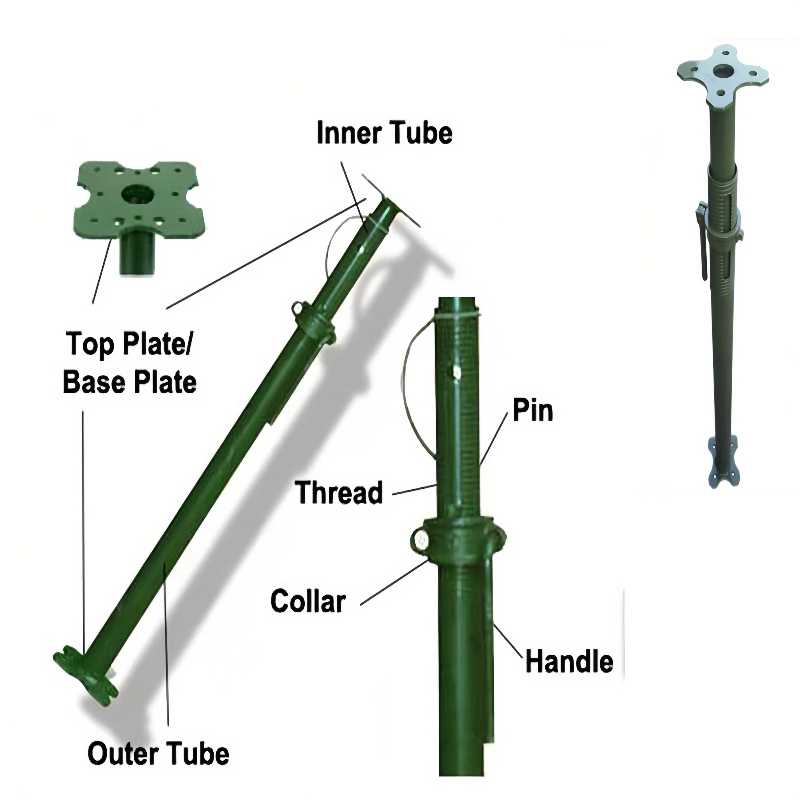

Outer Tube: Ø48 mm, Ø60 mm or Customized
Inner Tube: Ø40 mm, Ø48 mm or Customized
Adjustable Height: 1.6 m – 5.0 m
Surface Treatment: Painted, Powder Coated, Hot-Dip Galvanized
Accessories: Base Plate, U Head, Fork Head, Nut, Pin
| Model | Adjustment Range | Outer Tube | Inner Tube |
| Light Duty Prop | 1.6–2.9 m | Ø48 × 1.8–2.0 mm | Ø40 × 1.8–2.0 mm |
| Standard Prop | 1.8–3.2 m | Ø48 × 2.0–3.0 mm | Ø40 × 2.0–3.0 mm |
| Heavy Duty Prop | 2.0–3.5 m | Ø60 × 3.0–4.0 mm | Ø48 × 3.0–4.0 mm |
| Long Prop | 3.0–5.0 m | Ø60 × 3.0–4.0 mm | Ø48 × 3.0–4.0 mm |
